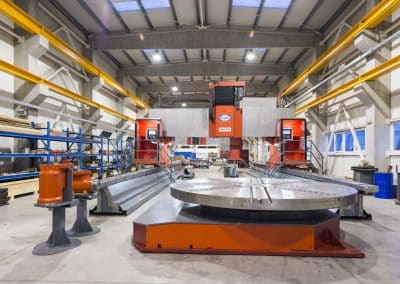

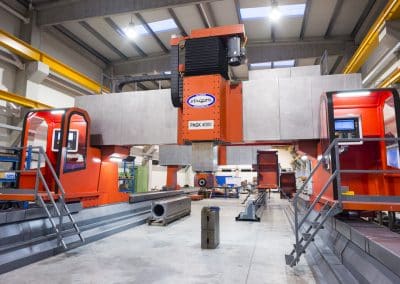

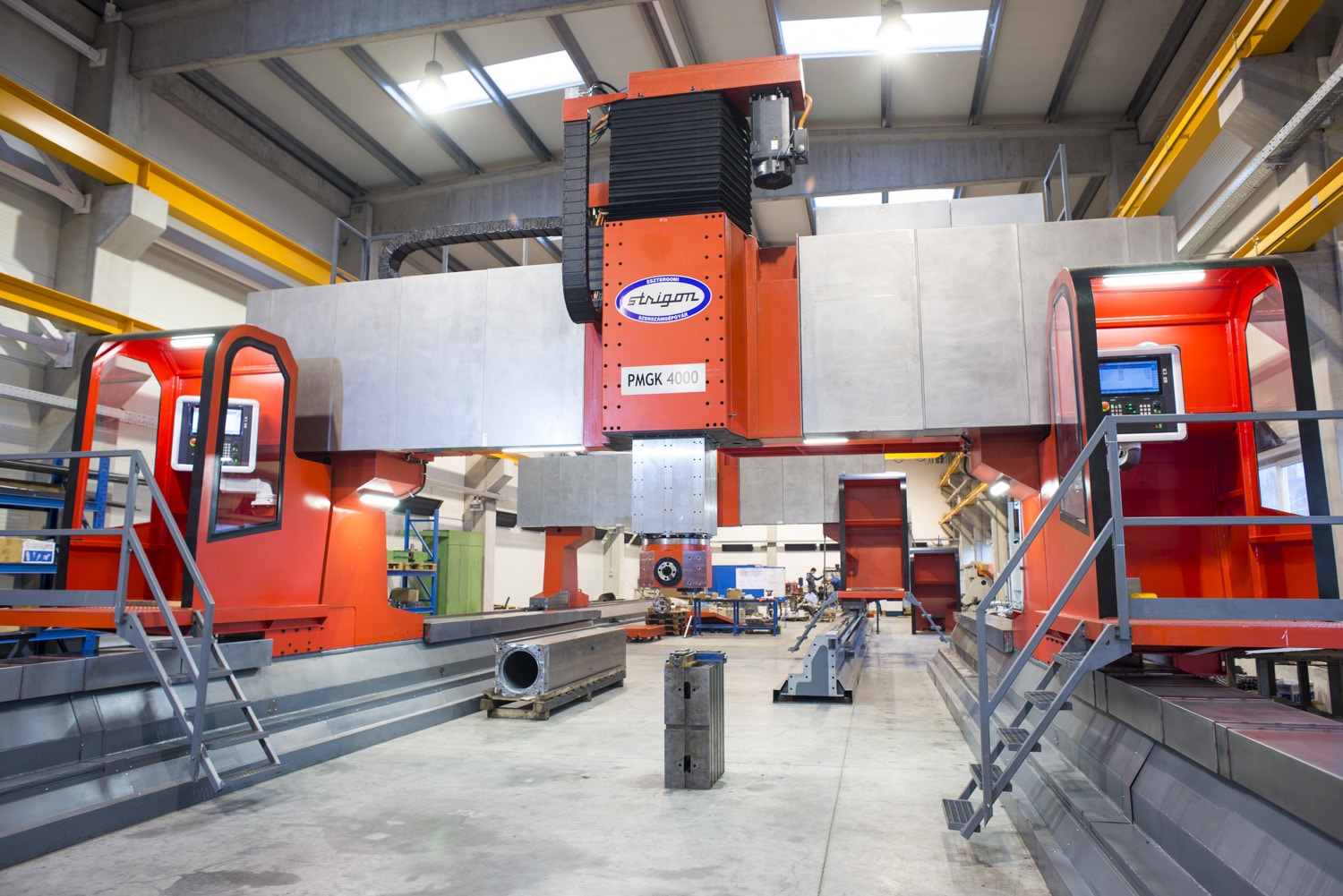

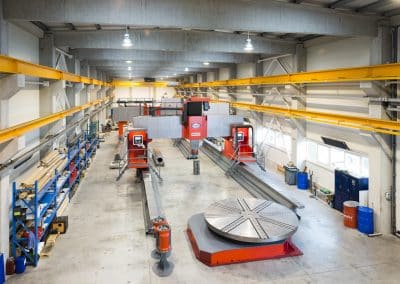

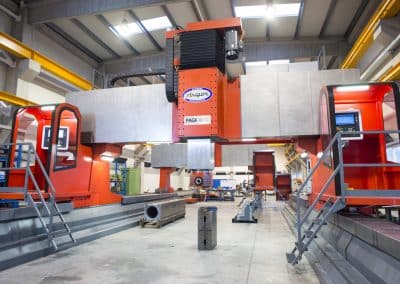

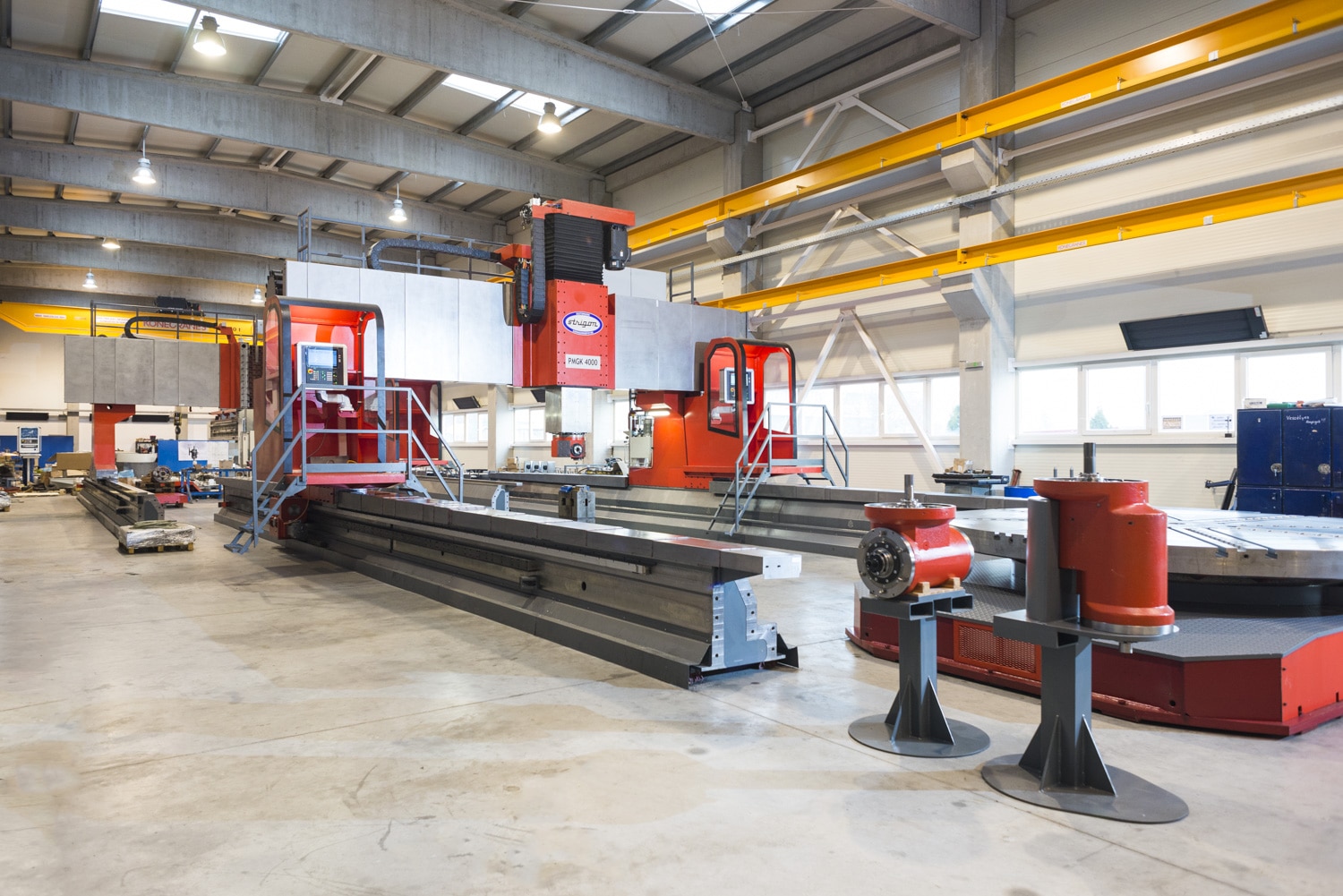

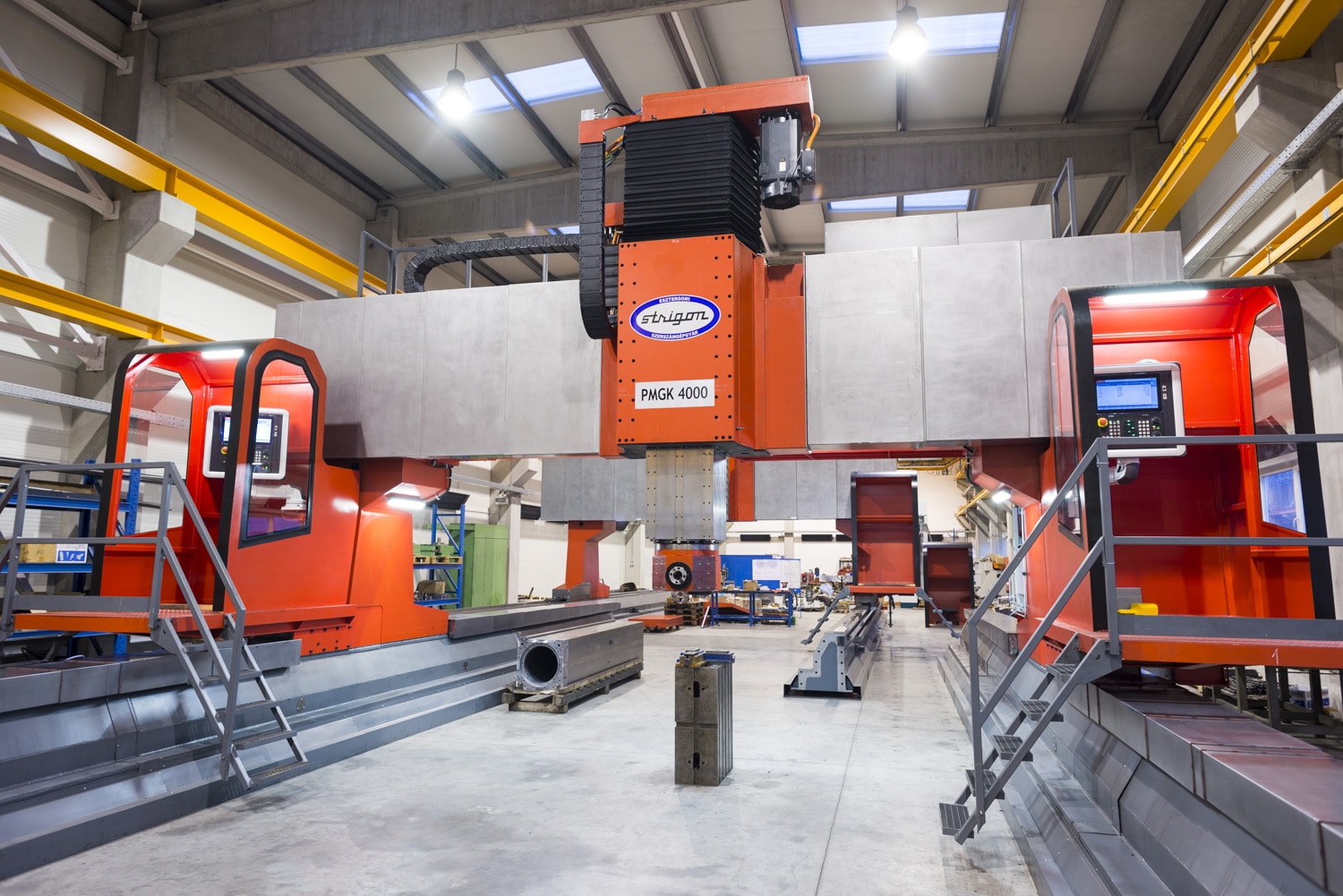

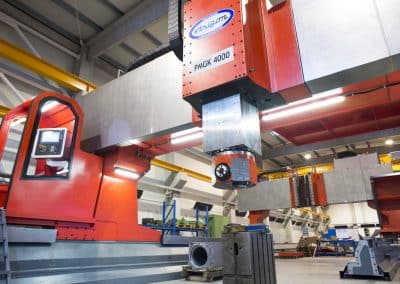

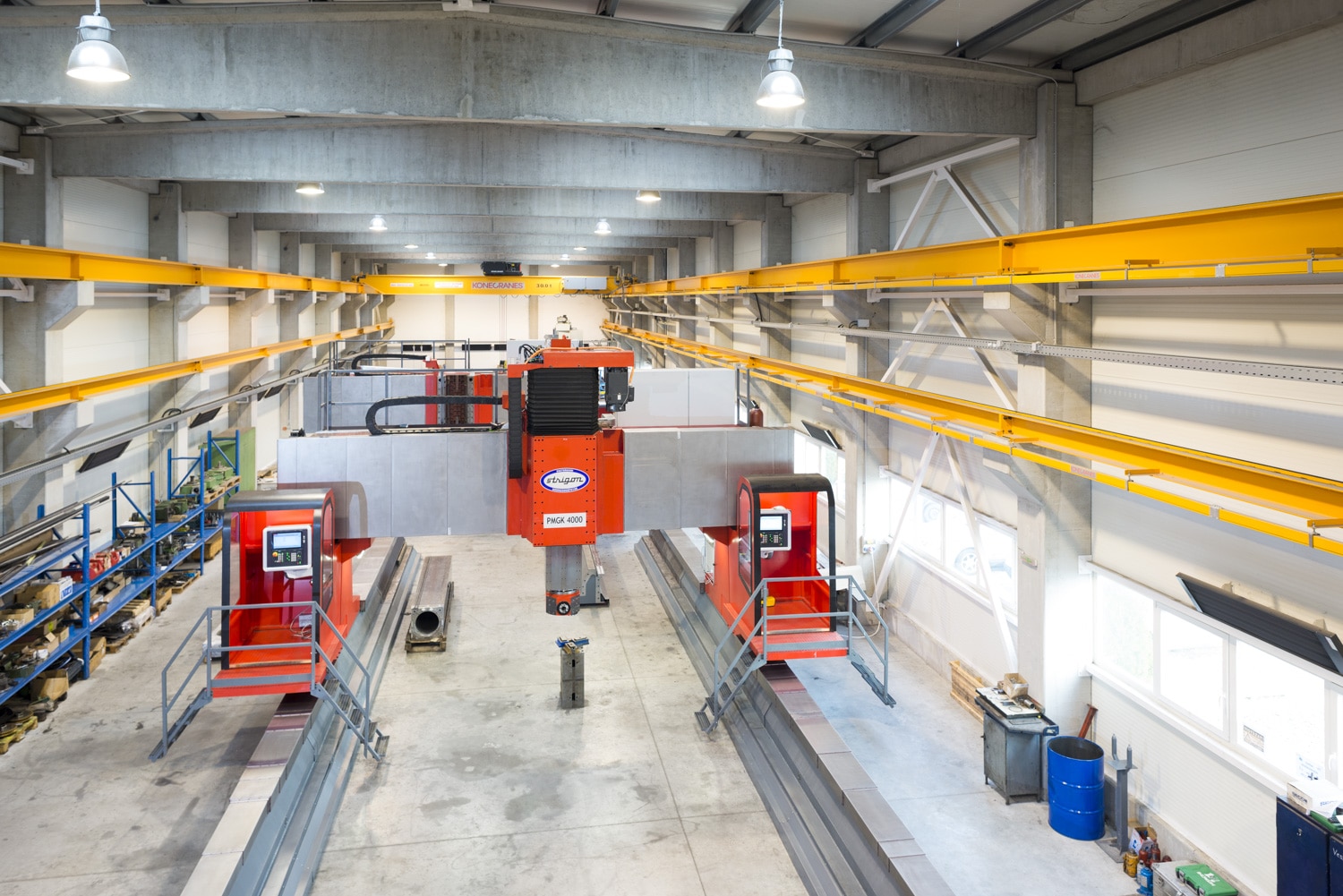

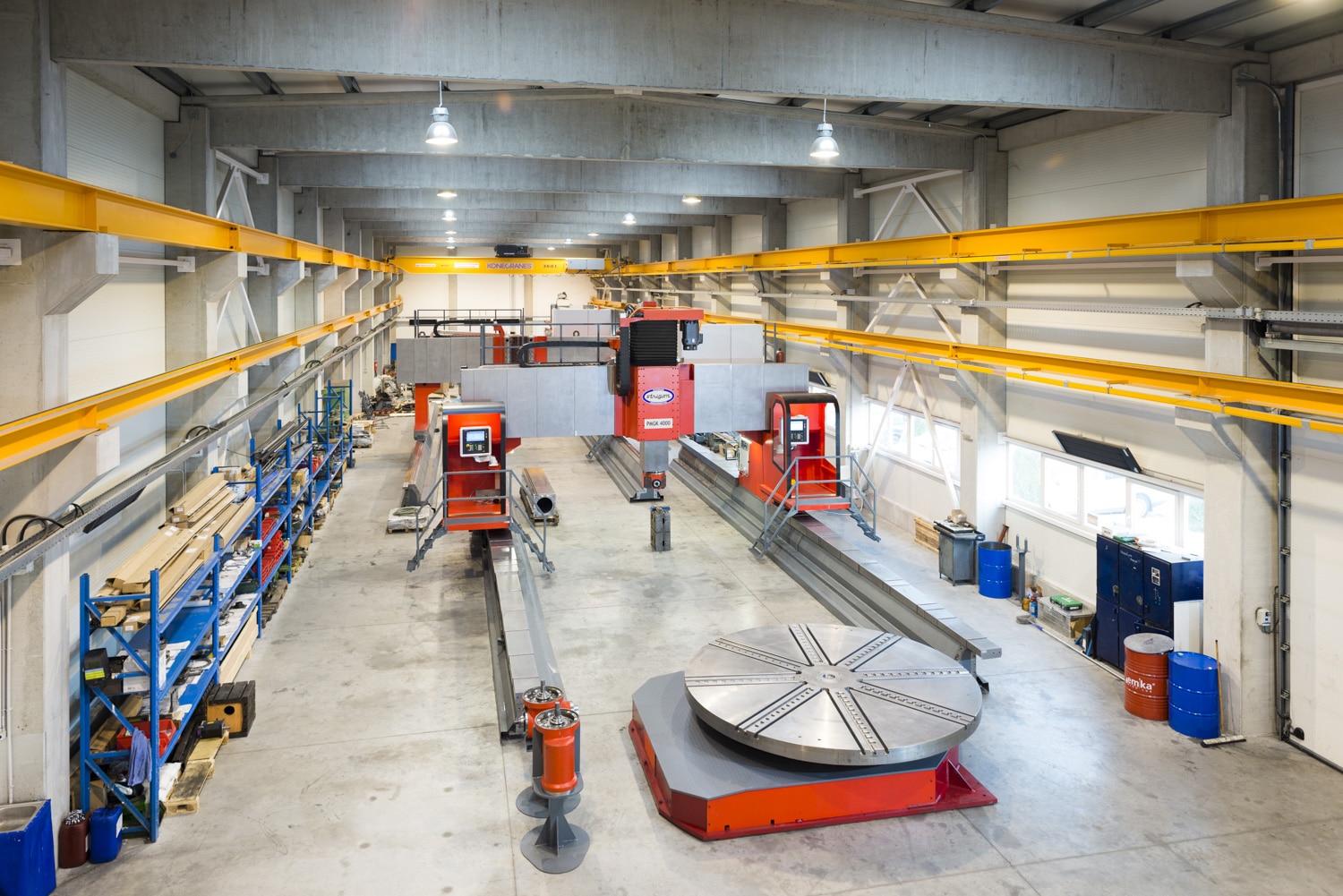

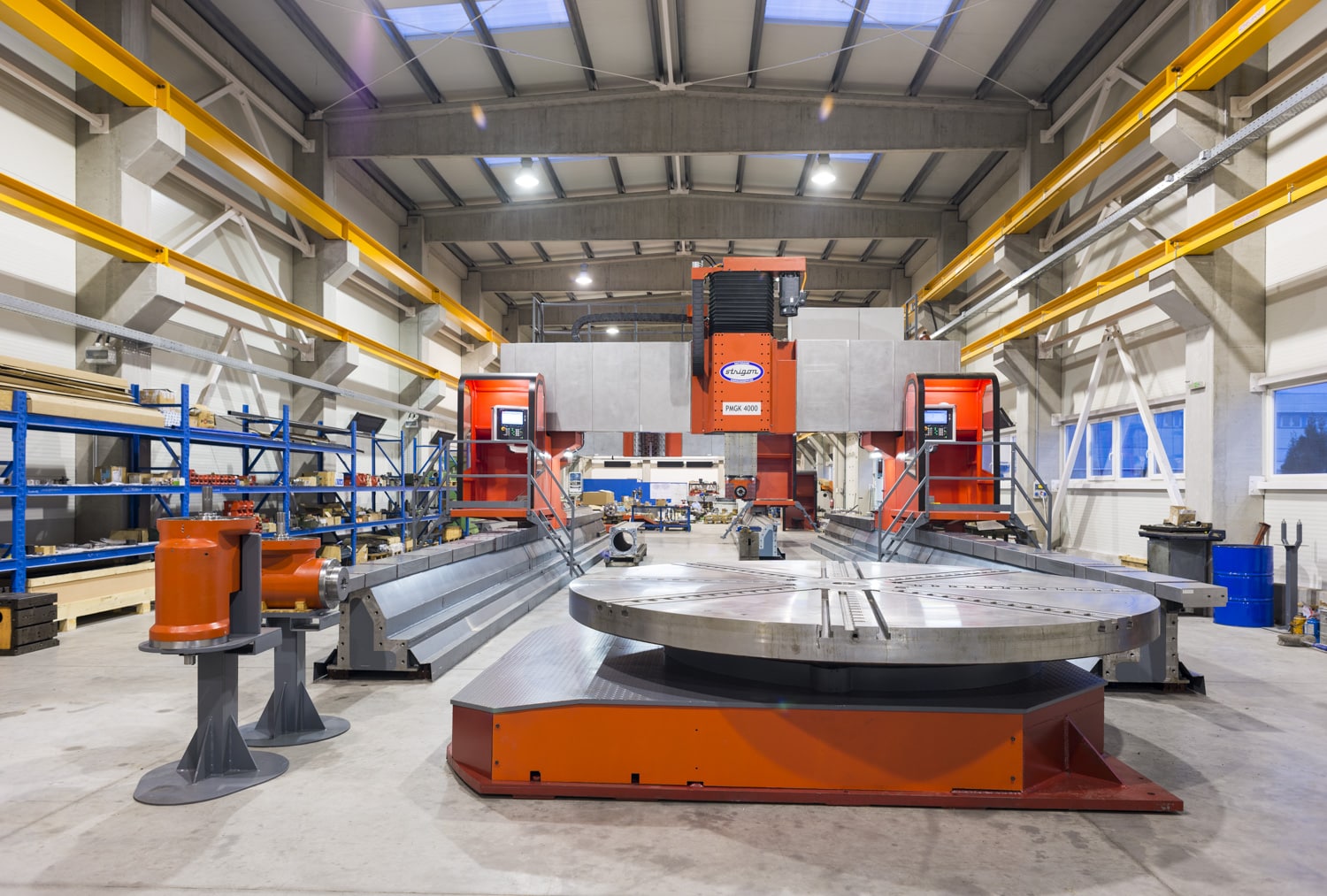

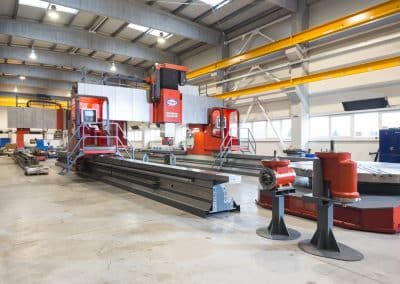

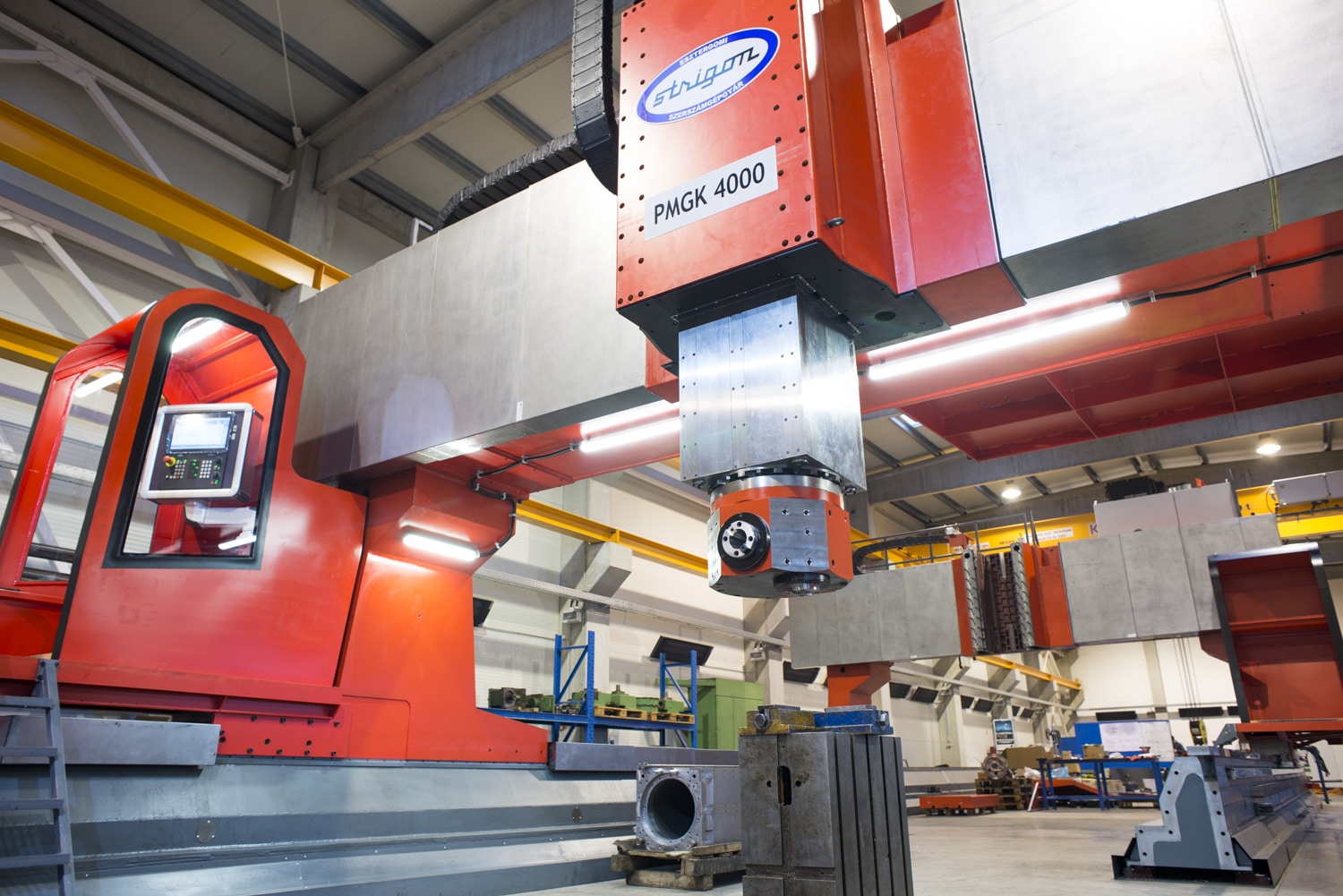

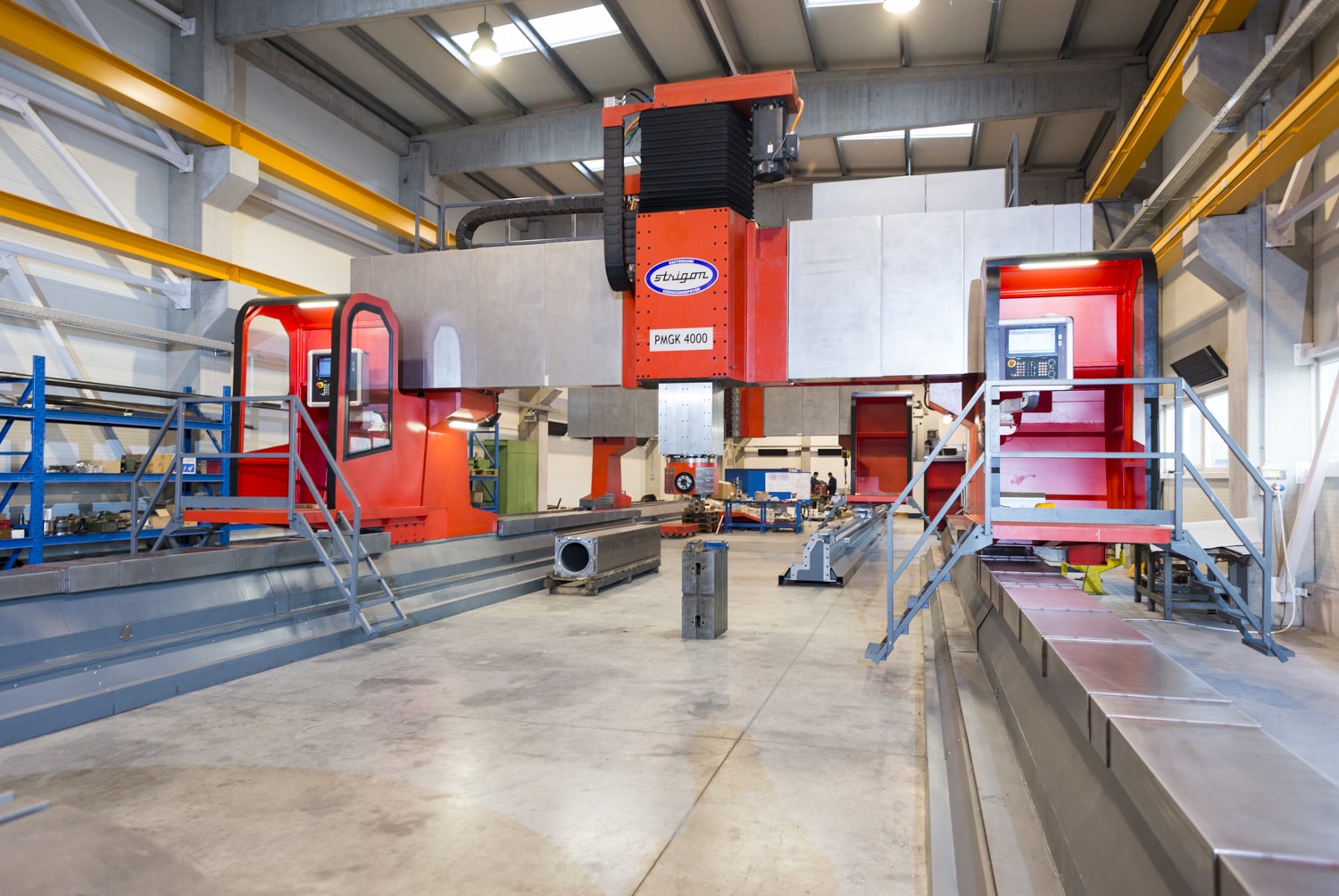

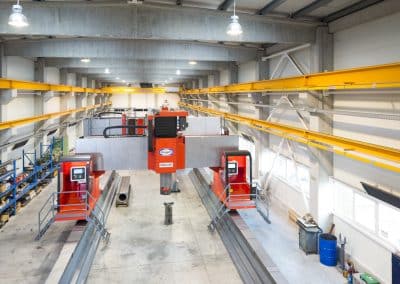

This machining centre with movable gantry is our most popular product . Customers prefer this machine mainly because of its robust structure, high throughput in a small installation area and high performance. They enable machining of complex workpieces of big dimensions. For example: machining of cranes , castings for energie industrie , bogies for trams , etc.
| MZP gantry type machine | |||||||
|---|---|---|---|---|---|---|---|
| Working travel | |||||||
| X (longitudinal axis) | [mm] |
5000 / 6000 / 7000 / 8000 / 10000 / 12000 / 14000 / 16000 / 18000 / 20000 / 22000 / 24000 |
|||||
| Y (cross axis) | [mm] |
3000 |
3500 |
4000 |
4500 |
5000 |
|
| Z (vertical axis) | [mm] |
1 500 (2000) |
|||||
|
Table width |
|||||||
| width | [mm] |
2000 |
2500 |
3000 |
3500 |
4000 |
|
|
Feed range |
|||||||
| X | [mm/min] |
1 – 20000 |
|||||
| Y | [mm/min] |
1 – 20000 |
|||||
| Z | [mm/min] |
1 – 20000 |
|||||
|
Clearence between culomns |
|||||||
| clearence | [mm] |
3000 |
3500 |
4000 |
4500 |
5000 |
|
|
Clearence between table and cross-rail |
|||||||
| clearence | [mm] |
2200 |
|||||
|
Motor output |
|||||||
| output | [kW] |
30 – 45 |
|||||
